sales@bprelec.com Waterproof Connector K series
FGG - K series

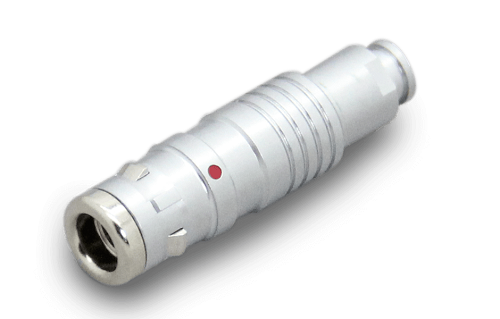

FGG Male plug(waterproof) - K series
Ø Shell Size Available: 0K, 1K, 2K,3K.
Ø Multiple Key Options: 30°, 40°,60° ,90°and more......
Ø Terminal Tpye: Solder for cable.
Ø Back nut: nut for bend relief.
Ø Lead Time: 3-7 days
Features
Ø Straight waterproof male plug with nut for bend relief.
Ø Push-pull self-latching system for mating and unmating easily.

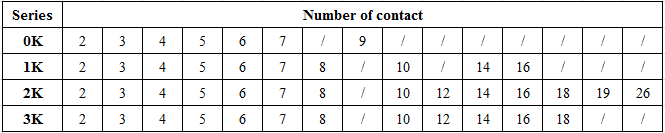

Ø Multi-contact types 2 to 26 contacts.
Ø Solder pins for cable.
Ø Watertight connection(IP68/IP66)
Ø Keying system (<> key standard) for connector alignment.
Ø Multiple key options to avoid cross mating of similar connectors.
Ø High packing density for space savings.
Ø Rugged housing for extreme working conditions.
Ø 360° screening for full EMC shielding.

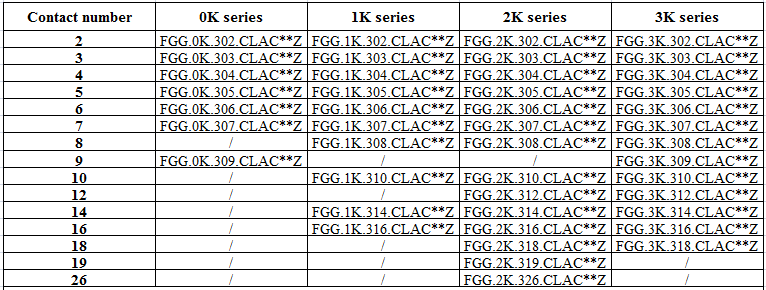

Part NO. List

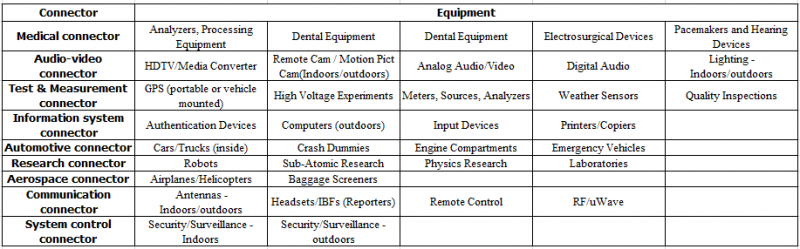

Application
Ø Shell Size Available: 0K, 1K, 2K,3K.
Ø Multiple Key Options: 30°, 40°,60° ,90°and more......
Ø Terminal Tpye: Solder for cable.
Ø Back nut: nut for bend relief.
Ø Lead Time: 3-7 days
Features
Ø Straight waterproof male plug with nut for bend relief.
Ø Push-pull self-latching system for mating and unmating easily.
Ø Multi-contact types 2 to 26 contacts.
Ø Solder pins for cable.
Ø Watertight connection(IP68/IP66)
Ø Keying system (<> key standard) for connector alignment.
Ø Multiple key options to avoid cross mating of similar connectors.
Ø High packing density for space savings.
Ø Rugged housing for extreme working conditions.
Ø 360° screening for full EMC shielding.
Part NO. List
Application
