sales@bprelec.com Push Pull Connector B series
EGG - B series

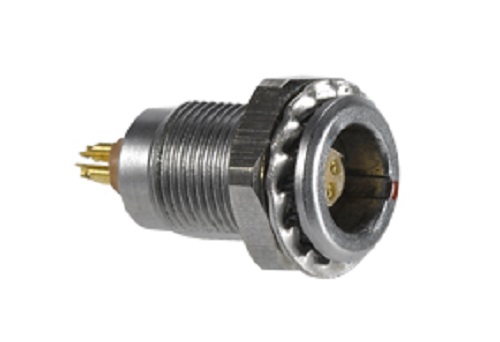

EGG Female Socket - B series
Ø Shell Size Available: 00B,0B, 1B, 2B,3B
Ø Multiple Key Options: 30°, 40°,60° ,90°and more......
Ø Terminal Available: Solder, Straight print and elbow print.
Ø Mounting Type: Front Pannel
Ø Lead Time: 3-7 days
Features
Ø Fixed female socket, nut fixing from back pannel.
Ø Push-pull self-latching system makes it easy for mating and unmating.

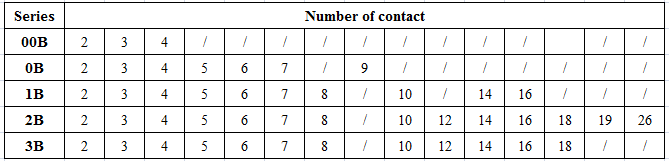

Ø Multi-contact types 2 to 26 contacts.
Ø Soldering or printed circuit contacts.
Ø Keying system (<> key standard) for connector alignment.
Ø Multiple key options to avoid cross mating of similar connectors.
Ø High packing density for space savings.
Ø 360° screening for full EMC shielding.

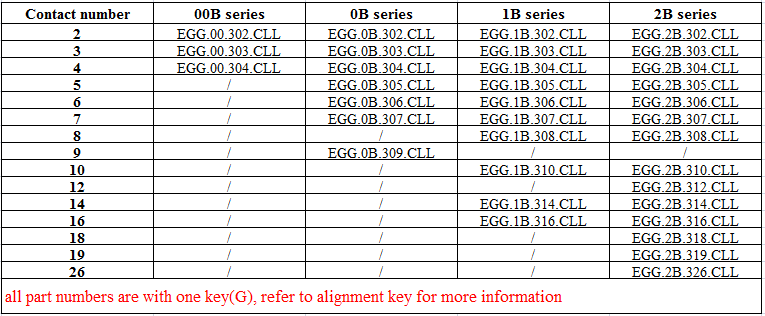

Part NO. List

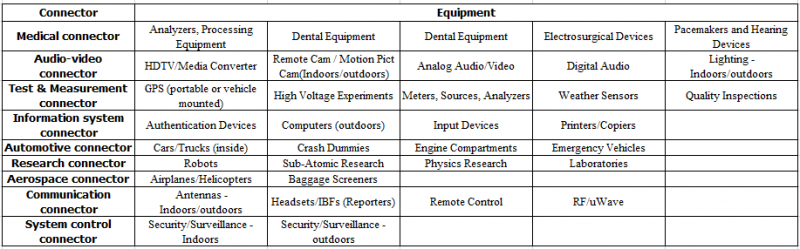

Application
Ø Shell Size Available: 00B,0B, 1B, 2B,3B
Ø Multiple Key Options: 30°, 40°,60° ,90°and more......
Ø Terminal Available: Solder, Straight print and elbow print.
Ø Mounting Type: Front Pannel
Ø Lead Time: 3-7 days
Features
Ø Fixed female socket, nut fixing from back pannel.
Ø Push-pull self-latching system makes it easy for mating and unmating.
Ø Multi-contact types 2 to 26 contacts.
Ø Soldering or printed circuit contacts.
Ø Keying system (<> key standard) for connector alignment.
Ø Multiple key options to avoid cross mating of similar connectors.
Ø High packing density for space savings.
Ø 360° screening for full EMC shielding.
Part NO. List
Application
