Push Pull Connector B series

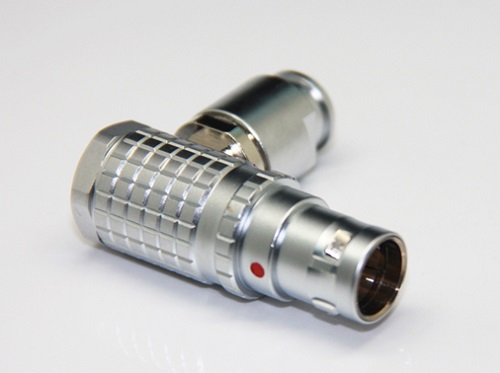

FNG Elbow male plug - B series
Ø Shell Size Available:0B, 1B, 2B,3B
Ø Multiple Key Options: 30°, 40°,60° ,90°and more......
Ø Terminal Type: Solder for cable
Ø Back nut: nut for bend relief
Ø Lead Time: 3-7 days

Features
Ø Elbow male plug with nut for bend relief..
Ø Push-pull self-latching system for mating and unmating easily.

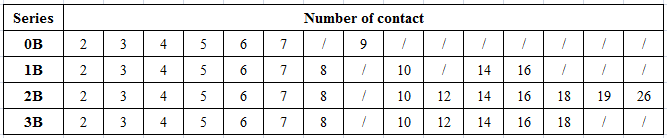

Ø Multi-contact types 2 to 26 contacts
Ø Solder pins for cable
Ø Keying system (<> key standard) for connector alignment
Ø Multiple key options to avoid cross mating of similar connectors
Ø High packing density for space savings
Ø 360° screening for full EMC shielding.

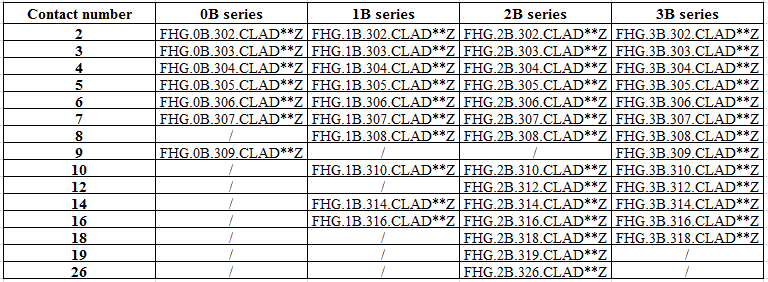

Part NO. List

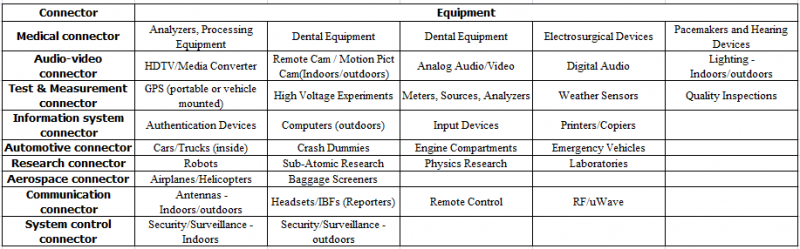

Application
